Variable Displacement Type Compressors

•

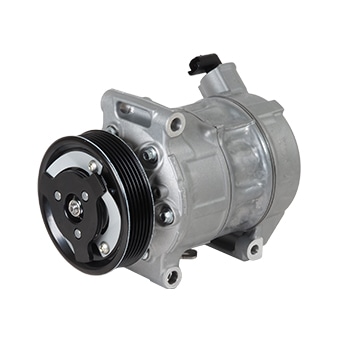

  PXC (Swash Plate Type)

  A model in which power from the engine is transmitted and cut off using a clutch,
  adaptable to a wide range of vehicle needs. The discharge capacity (amount of compression) is controlled by changing the swash plate angle in response to electrical signals from the vehicle.

  Specifications

  Discharge capacity	140cc	170cc

•

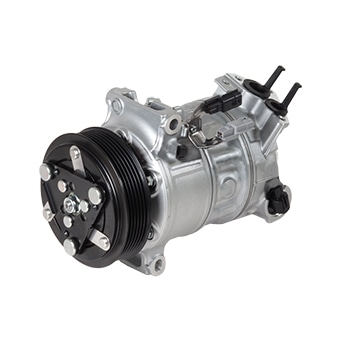

  PXE (Swash Plate Type)

  A model in which power is constantly transmitted from the engine without a clutch. Because there is no need to cut off the power from engine to compressor, the unit can be made lighter. The discharge capacity (amount of compression) is controlled by changing the swash plate angle in response to electrical signals from the vehicle.

  Specifications

  Discharge capacity	140cc	170cc

•

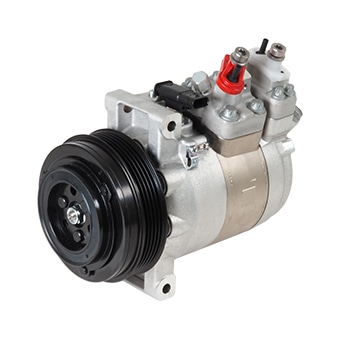

  SDV (Wobble Plate Type)

  These are internal variable displacement compressors in which discharge capacity is controlled by using a sensor installed in the compressor to detect the refrigerant pressure in the air conditioning system.

  Specifications

  Discharge capacity	100cc	125cc	160cc

•

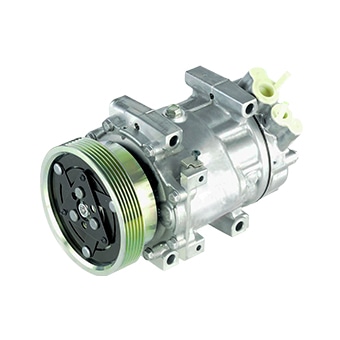

  SDC (Wobble Plate Type)

  These are external variable displacement compressors in which the vehicle detects refrigerant pressure in the air conditioning system and sends an electrical signal to the compressor to control the discharge capacity.

  Specifications

  Discharge capacity	125cc	160cc

•

  SJ (Wobble Plate Type)

  These are external variable displacement compressors for automotive use, featuring excellent pressure resistance to allow for the very high-pressure operation that CO₂ requires.

  Specifications

  Discharge capacity	31cc
